Moog Modular Clone

This is the current status of my Moog modular clone. Please click on an entry of the diary to see a detailed module description.

Click to enlarge
Status 25.04.2021

Upper Cabinet: T904A VC_LPF, T904C Filter Coupler, T904B VC_HPF, T995 Attenuators,
T994 Multiples, T984 4x4 Channel Mixer, T993 STrigger and Envelope Voltage Router,
T911-A Dual Trigger Delay, T911 ADSR Bank, T902 VCA Bank

Full size row of main cabinet: T901 Oscillator Bank, TMINIA Oscillator Driver,
TMINIB Oscillator, T914 Extended Fixed Filter Bank, T960 Sequential Controller, TAMP Amplifier Cascade

Medium size row of main cabinet: 3 x TCP3A Mixer / Router, TCP4A Interface and PSU Access,
TOUT Output Module, TCP8A Power Supply

Current amount of Modules: 22

T901A VCO Bank: 1

T902 VCA Bank: 1

T904A VC_LPF: 1

T904B VC_HPF: 1

T904C Filter Coupler: 1

T911 ADSR Bank: 1

T911-A Dual Trigger Delay: 1

T914 Extended Fixed Filter Bank: 1

T960 Sequential Controller: 1

TAMP Amplifier Cascade: 1

T984 4x4 Channel Mixer: 1

T993 STrigger and Envelope Voltage Router: 1

T994 Multiples: 1

T995 Attenuators: 1

TCP3A Mixer / Router: 3

TCP4A Interface and PSU Access: 1

TCP8A PSU: 1

TMINIA Oscillator Driver: 1

TMINIB Oscillator: 1

TOUT Output Module: 1

25.04.2021:	T960 Sequential Controller finished.
22.12.2020:	TAMP Amplifier Cascade finished.
20.12.2020:	TCP4A Interface and PSU Access finished.
06.09.2019:	TOUT Output Module finished.
06.06.2019:	TMINIA Oscillator Driver finished.
06.06.2019:	TMINIB Oscillator finished.
17.03.2018:	T921A Oscillator Driver Clone finished.
21.12.2015:	T984 4x4 Channel Mixer Clone finished.
27.03.2015:	T993 STrigger and Envelope Voltage Router Clone and T911-A Dual Trigger Delay Clone finished.
21.01.2015:	T911 ADSR Bank Clone finished.
02.12.2014:	T902 VCA Bank Clone finished.
15.01.2014:	T901 VCO Bank Clone finished.
30.04.2013:	T950 Keyboard Clone finished.
24.09.2012:	TCP3A Control Panel Mixer / Control Voltage Router Clone finished.
26.08.2012:	T914 Extended Fixed Filter Bank Clone finished.

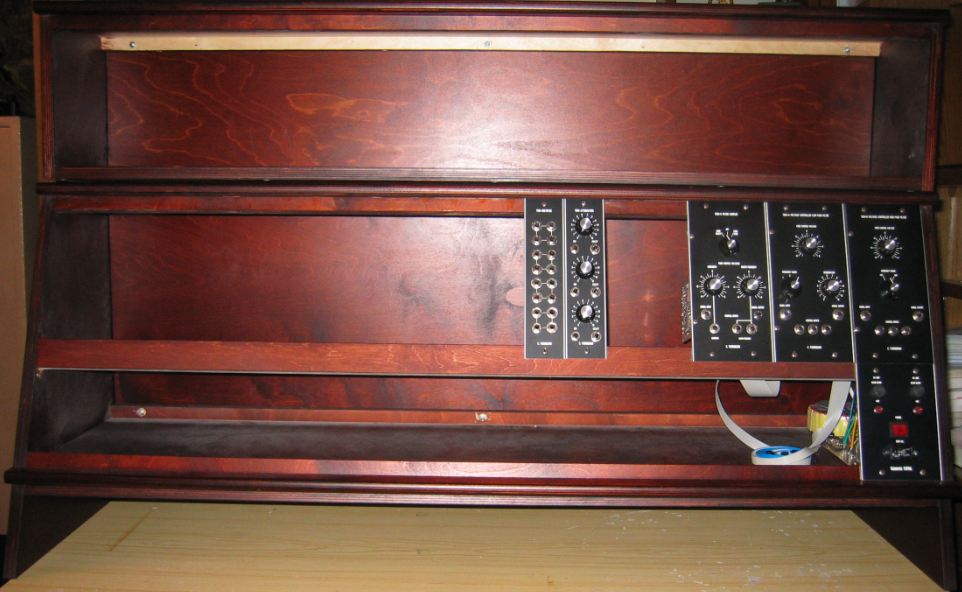

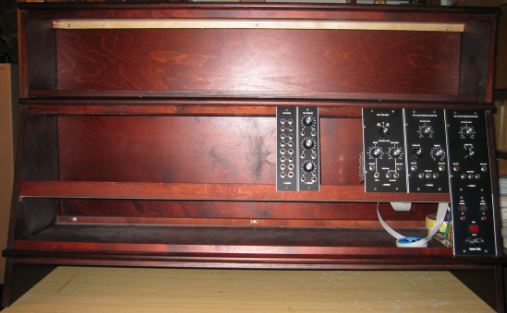

07.05.2012:	T904C Filter Coupler clone finished.
27.12.2011:	T904A Voltage Controled Low Pass Filter clone finished.
20.09.2011:	TCP8A Power Supply clone finished.
16.09.2011:	T995 Attenuators clone finished.
11.09.2011:	T994 Multiples clone finished.
01.08.2011:	T904B Voltage Controled High Pass Filter clone finished.

List of cloned Moog modules in numerical order:

Please send questions or remarks to:
Carsten Toensmann
